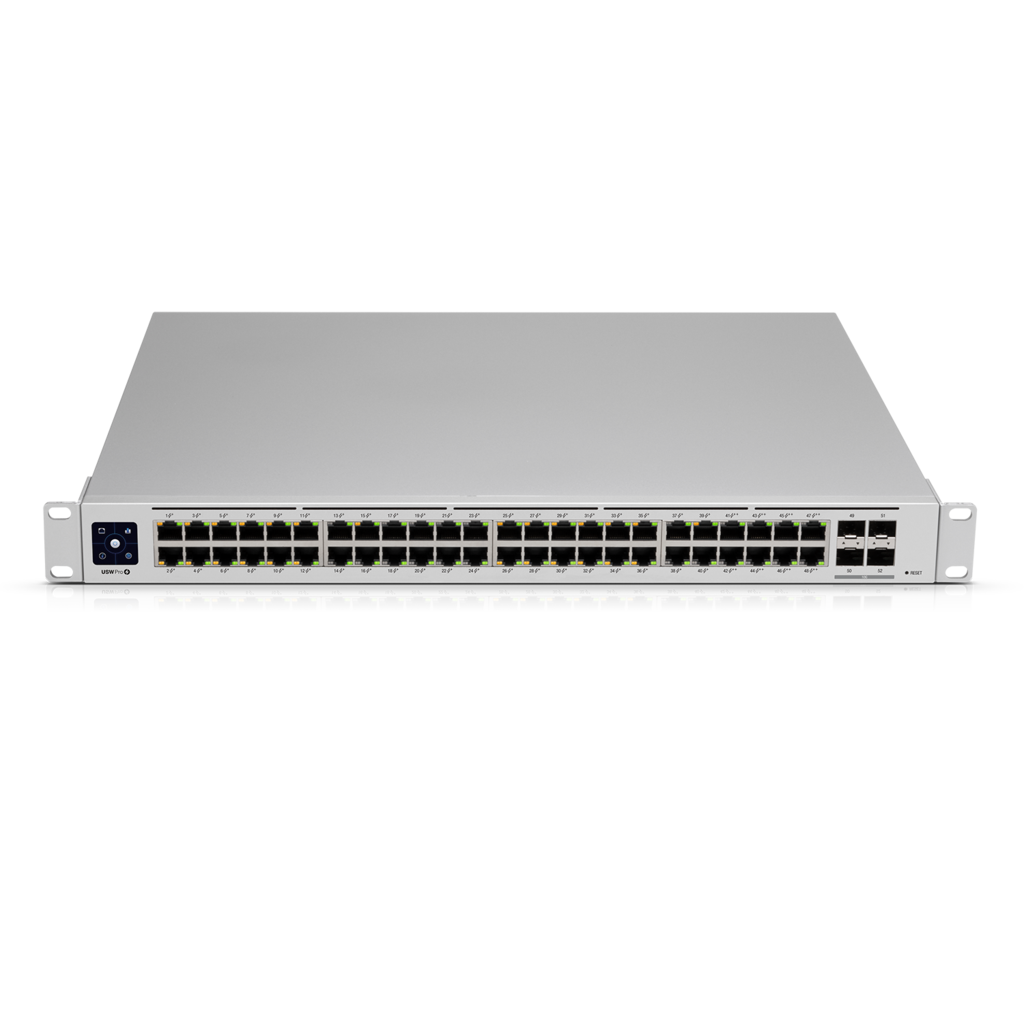

UniFi Switch Pro 48 PoE
UniFi Switch Pro 48 PoE
48-port switch with (40) 802.3at PoE+ ports, (8) 802.3bt PoE++ ports, and (4) 10 GB SFP+ ports. Powerful second-generation UniFi switching.
UniFi Switch Pro 48 PoE is a fully managed Layer 3 switch with (8) 802.3bt (PoE++) and (40) 802.3at (PoE+) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 48 PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 PoE is the ideal access layer switch for any UniFi solution – it combines up to 600W of near-silent PoE power with UniFi SmartPower RPS power redundancy. UniFi Network application and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features:
(8) Gigabit RJ45 802.3bt PoE++ ports
(40) Gigabit RJ45 802.3at PoE+ ports
(4) 10G SFP+ ports
Layer 2 and Layer 3 features
600W maximum PoE power
UniFi SmartPower RPS DC input
Near-silent cooling
1.3" touchscreen display
Managed with UniFi Network application
Managed with UniFi Network Application Version: 5.10.5 or higher
USW PRO 48 POE GEN2
Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch PRO 48 PoE, is a configurable Gigabit Layer-3 switch with auto-sensing 40 802.3at PoE+ and 8 802.3bt PoE++. It offers 48 RJ45 Ethernet ports and 4 SFP+ ports, providing 10 Gigabit PoE links to your devices and fiber uplink options to your enterprise network.
The UniFi Switch PRO 48 PoE features an 1.3" touch LCM and integrated fans for quiet cooling. The LCM provides current switch states and the necessary information you need for quick diagnosis.
Managed and configured by the UniFi Controller with UniFi Mobile app support, the UniFi Switch offers an extensive suite of advanced Layer-3 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port, Inter-VLAN routing, static routing and DHCP server. The UniFi Controller and mobile app allows admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Note: Layer3 will be included in later software release
Hardware Specs:
Dimensions = 442.4 x 399.6 x 43.7 mm = (17.42 x 15.73 x 1.72")
Weight With Rackmount Brackets6.25 kg (13.78 lb) 6.34 kg (13.98 lb)
Interfaces Networking
Management(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports
Ethernet In-Band
Power Method
Universal Input = 100-240VAC/50-60 HzUSP RPS DC Input = 52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply = AC/DC, Internal, 120W
Supported Voltage Range = 100 to 240VAC
Max Power Consumption (Excluding PoE Output) = 60W
LEDs
System Status
RJ45 Data Ports PoE; = Speed/Link/Activity
SFP Data Ports = Link/ActivityESD/EMP Protection = Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration = ETSI300-019-1.4
Standard Operating Temperature = -5 to 40° C (23 to 104° F)
Operating Humidity = 10 to 90% Noncondensing
Certifications CE, FCC, IC
SOUND LEVEL*
25% PoE Load, 25° C Room Temperature 0.9 dBr
50% PoE Load, 25° C Room Temperature 7.3 dBr
100% PoE Load, 40° C 22.5 dBrPoE Interfaces
Ports 1-40 POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
Ports 41-48 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)Max. PoE Wattage per Port by PSE
802.3at = 32W
802.3bt = 64WVoltage Range 802.3af Mode 44-57V
Voltage Range 802.3at Mode50-57V
*Background noise level: 27.5 dBa
